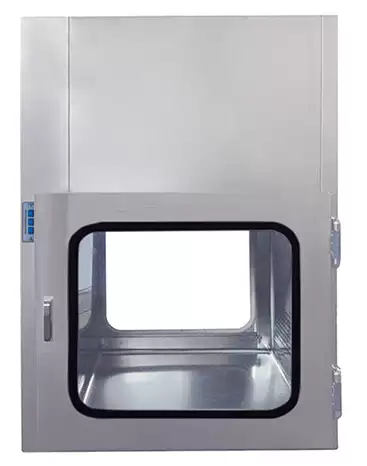

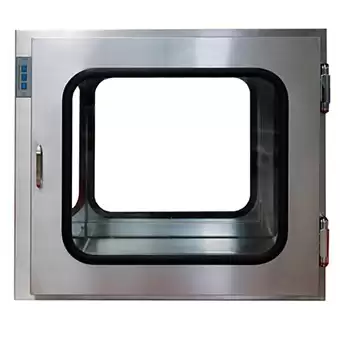

Pass Box BEM1CL3 (BAPB-103)
Pass Box
- Sea, Air, Door to Door Shipping
- 1 Year Warranty
- US & European Standards
Specifications
| Model | BEM1CL3 |
| Type | Air Shower Pass Box |
| External Size(W*D*H)mm | 860*770*1200 |
| Internal Size(W*D*H)mm | 700*700*700 |
| Material | 304Stainless steel |
| Interlock | Electronical |
| UV Lamp | 15W*1 |
| HEPA Filter | Efficiency≥99.995% at 0.3μm |
| Clean Air Speed | 0.36~0.54m/s. |
| Power Supply | 220V, 50Hz; 110V, 50/60Hz |
| Gross Weight (Kg) | 120 |
| Packing Size(W*D*H) mm | 980*900*1450 |
Applications
Pass Box is used to transfer goods between rooms of different clean levels of clean room. It can reduce times of opening door, prevent the air convection between different rooms and minimize the pollution extent.
