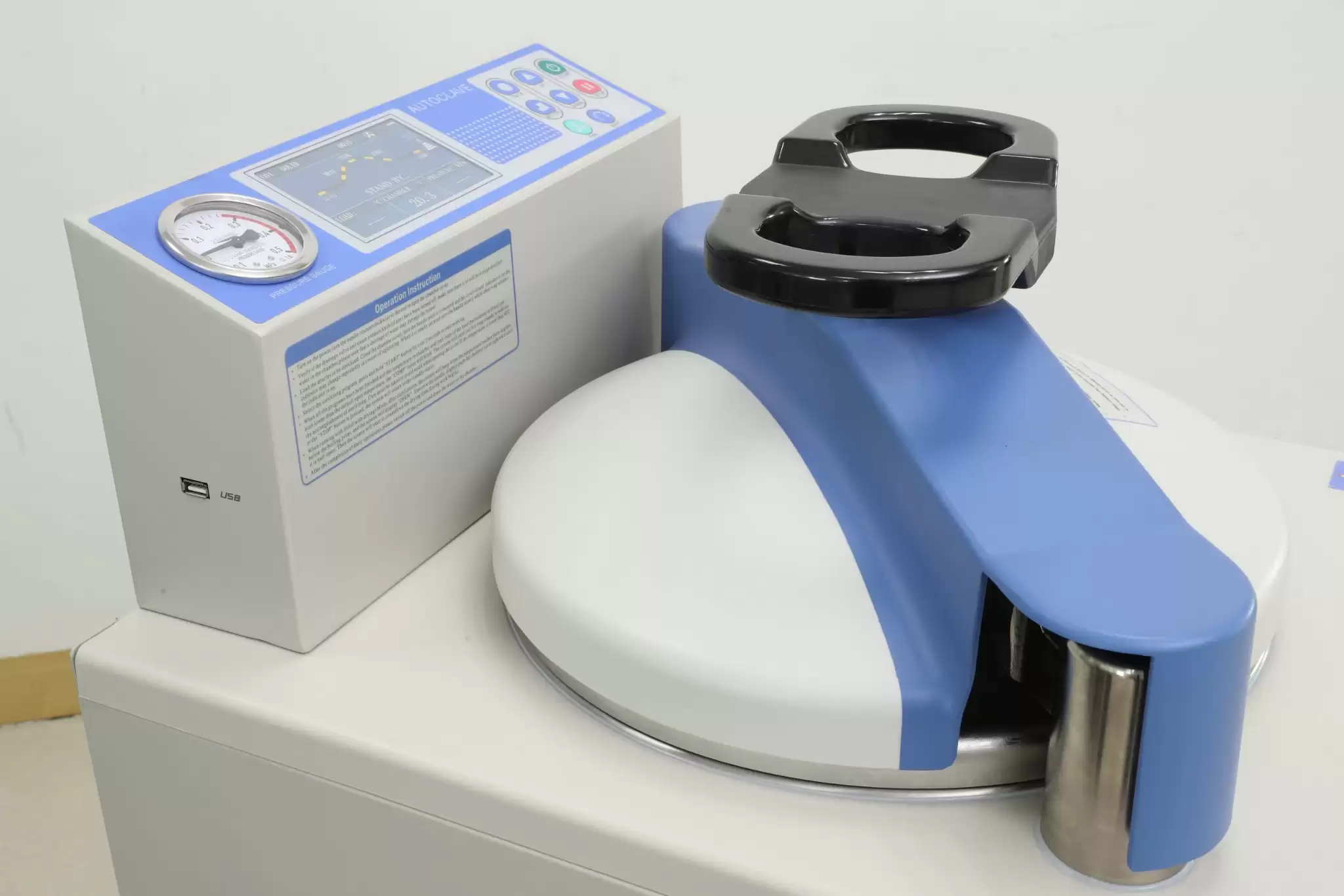

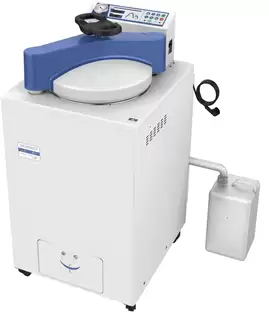

Laboratory Vertical Autoclave BEO1E5
Vertical Autoclave, Drying- Sea, Air, Door to Door Shipping
- 1 Year Warranty
- US & European Standards
Specifications
| Model | BEO1E5 |
| Capacity (L) | 54 |
| Dimensions (LxWxH) mm | 460x542x1105 |
| Chamber dimension (DiaxH) mm | Chamber dimension (DiaxH) mm |
| Rated power (W) | Rated power (W) |
| Basket size (pcs) | (Φ298x195) x3 |
| Power requirement | 220V+10% 16A 50HZ/60HZ |
| Temperature display accuracy | 0.1°C |
| Sterilization temp. range | 1~6000 min |
| Sterilization time range | 105°C~135°%C |
| Melting temp. range | Melting temp. range |
| Working environment | 5°C~40°C Relative humidity <85% |
| Chamber material | SUS304 stainless steel (316L as option) |
| Melting time | 1~6000 min |
| Warming temp. | 45°C~79°C |
| Warming time | 1~9999 min |
| Memory function | 60 program saved in system,999 cycles saved by USB |
| Appointment timer range | Auto start up appointment)0 ~ 15 days |
| Exhaust speed control | Fully automatic internal discharging with 6 levels choice |
| Sterilization mode | Liquid,liquid with warming,solid,wrapped instrument,fabric,rubber,fast,waste,agar,self-defined |
| Controller | "SMART III" smart microcomputer controller |
| Drying | Drying time: 1~300min Drying temp.: 80~160°C |
| Cooling way | Fast cooling fan |
| Pressure gauge range | Pressure gauge range |
| Vacuum pump | Pulse times: 1~ 9 times Vacuum degree: <-80kpa Vacuum leakage rate (per min)<0.13kpa |
| Safety device | Lid closing checking,dry scorch protection,,safety valve,water level sensor,over temperature/pressure protection,temperature/pressure monitor, electricity safety(over current/short circuit/leakage),cooling lock,anti-scald lid andbench corner,automatic troubleshooting |
Features
Advanced

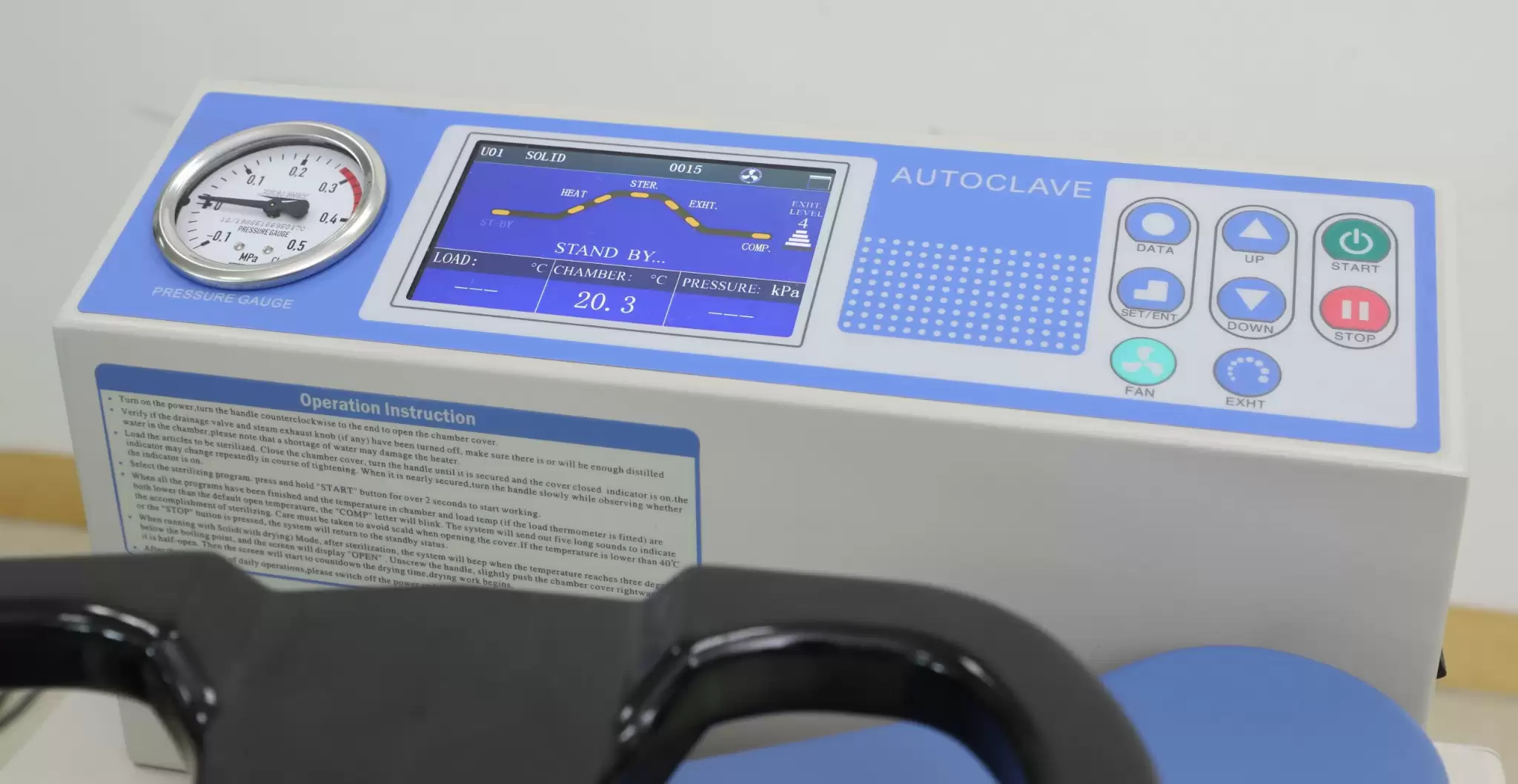

Colorful LCD screen
LCD screen with English and Chinese choice, using text, data, and graphical methods to dynamically display various statuses, the sterilization process is clear at a glance.
6 level of exhaust speed control
After sterilization, you can choose a different exhaust speed, and you can adjust it freely at any time of exhausting.
Condenser (Option)
Equipped with a professional condenser, the steam generated during the sterilization process is converted into water through the condenser, achieving zero discharge of water vapor/mist.
F0 value calculation
FO value 1s automatic calculated, can print out by micro-printer
Drying
Fully automatic drying: Equipped with an air pump and a 0.2um air filter, it automatically starts drying after sterilization. After sterilization, clean air will be put in to replace the wet air inside, so as to improve drying efficiency.

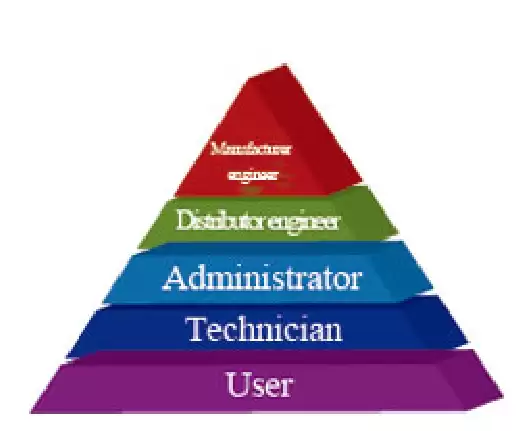

5 level access permission
The operation permissions for instruments are divided 1nto five levels, with each level of user
having an independent password and multiple IDs that can be assigned. Each level of user
has limited access to certain usage permissions
Fast cooling fan
To shorten cooling process after sterilization
Auto water fill(Option)
Offer pipe and pump to connect to the direct water supply to achieve automatic water feeding, must be added while production.
Air inlet filter
Filtration 1s higher than 99.99% 1n particle with diameter of 0.2μm
Fully automatic drying
Equipped with an air pump and a 0.2um air filter, it automatically starts drying after sterilization. After sterilization, clean air will be put in to replace the wet air inside, so as to improve drying efficiency.
Safety
1. Nice look
The lid and bench corners are covered with insulation to avoid getting scald
2. Lid closing check
The machine can not start if the lid is not locking well by checking mechanically and electrically.
3. Interlock
Only when the temperature and pressure are safe inside, can the door be opened. If the door is not closed in place, it cannot start working
4. Triple protection for water shortage
The bottom of the sterilization chamber is equipped with three different dry burning protection devices: liquid expansion type, copper temperature sensing type, and electric ion type (water level sensor), to avoid misjudgment caused by a single method.
5. Double protection for over pressure
Mechanical pressure gauge and electric sensing system, once pressure is abnormal, the system will cut power, release the pressure and send out an alarm.
6. Auto troubleshooting
System will monitor the working status, and will cut the power, send out alarm, and report the error information once any abnormal situation is detected.
7. Safety test function
Regular testing of system security and safety protection measures is possible
8. Temperature monitor
Power cut and alarming sent, if there is temperature is too high or temperature rising is abnormal
9. Electrical production
Prevention for over current, short circuit and electricity leakage
10. Saturated steam monitoring
The system automatically monitors the purge out of cold air to ensure the pure steam
Intelligent
1. Calibration port
Offer temp. and pressure interface, together with the 3Q adapter joints, can insert max 15 sensors one time to do the calibration work
2. Saturated steam monitoring
The system automatically monitors the purge out of cold air to ensure the pure steam environment
3. Program memory storage system
Users can set their own program, and save it in the system.
4. Special software for drug packaging materials (option)
The product meets the 2020 Chinese Pharmacopoeia or EP10.2 standards
Humanization
1. Just right depth
Conforming to ergonomics,the chamber depths of 29/54/80/100L chamber are 378/725/670/780 (mm), making it easy to take and place samples and maintain the instrument
Accessories For Purchase
| images | name | description |
 | Micro printer | To print temp. time and FO value |
Printing set:printer+digital
pressure sensor:can print temp.and pressure in data and flowchart way
pressure sensor:can print temp.and pressure in data and flowchart way
(3Q)adapter joint
