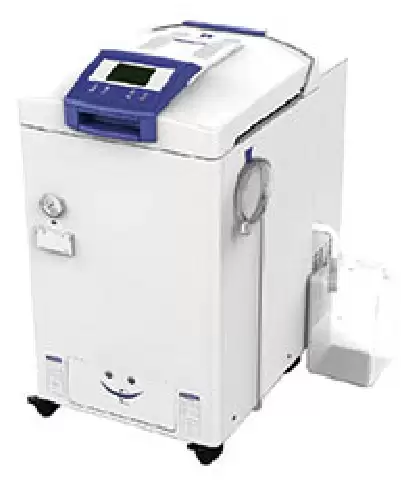

Laboratory Vertical Autoclave BEO1B15
Vertical Autoclave, Auto Drying- Sea, Air, Door to Door Shipping
- 1 Year Warranty
- US & European Standards
Specifications
| Model | BEO1B15 |
| Capacity (L) | 88 |
| Chamber dimension (Dia*H)(mm) | 565x950x1066 |
| Chamber dimension (Dia*H)(mm) Φ | Φ400x1050 |
| Rated power (W) | 4600 |
| Working environment | 220V±10% 32A 50HZ/60HZ |
| Temperature display accuracy | 0.1 |
| Environment | 5°C~40°C, RH≤85% |
| Chamber material | SUS304 (option SUS316L) |
| Sterilization temp. range | 105°C~138°C |
| Lid open way | Interlock sensor |
| Sterilization time | 1~6000 min |
| Melting temp. | 60°C~115°C |
| Melting time | 1~6000 min |
| Warming temp. | 45°C~79°C |
| Warming time | 1~9999 min |
| Exhaust speed control | Fully automatic internal discharging with 6 levels choice |
| Memory function | 60 program saved in system, 999 cycles saved by USB |
| Appointment timer range | Auto start up appointment 0~15 days |
| Pressure gauge | -0.1~0.5MPa |
| Pressure value set pressure | 0.29Mpa |
| Cooling lock OPEN temp. range | 40°C~99°C for solid/waste/agar/self-defined, 40°C~80°C for liquid |
| Sterilization mode | Liquid, liquid with warming, solid, wrapped instrument, fabric, rubber, fast, waste, agar, self-defined |
| Drying | 1~300min / 80~160°C |
| Controller | "Inspiration II" smart microcomputer controller |
| Cooling way | Fast cooling fan |
| Safety device | Interlock device, electric double interlock lid, lid closing checking, dry scorch protection, safety valve, water level sensor, over temperature/pressure protection, temperature/pressure monitor, electric safety, anti-scald lid |
| Biosafety function | Option for 0.2um biosafety filter (basic model +S) |
| 6 level exhaust speed control | Standard |
| Auto water fill | Standard |
| Drying | Standard |
| Deodorization | - |
| Access permission | 5 level |
| Fast cooling fan | Standard |
| Sterilization record | Standard |
| USB port | Standard |
| Micro-printer | Option |
| Condenser | Option |
| SUS316L steel | Option |
| Pharma package testing program | Option |
| Air inlet filter | Standard |
| Display system | LCD |
| Load thermometer(Floating PT100 sensor) | Option |
| Printing set(printer+digital pressure sensor) | Option |
| Auto drainage | Option |
| APP control/Remote control | Option |
| Steam collecting way | Internal |
| Auto cleaning | Option |
Description
Always prioritized safety since its establishment, adhering to the highest industry standards and providing multiple safety guarantees from design, manufacturing,use,application to service.

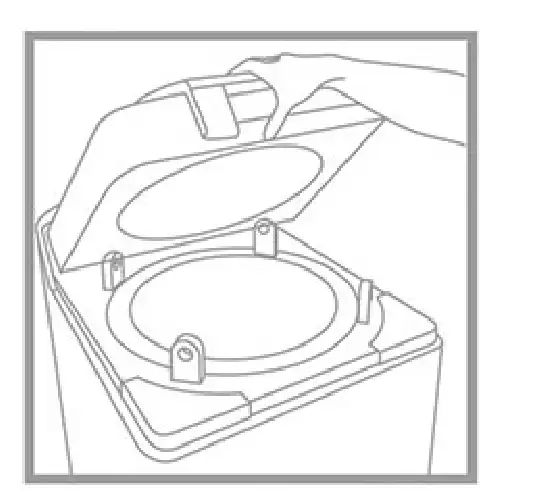

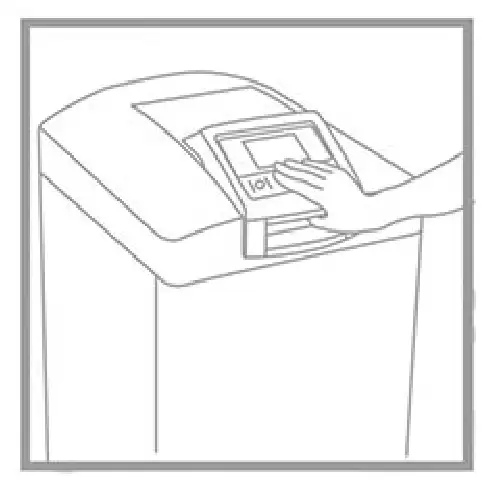

Slightly press the lid
Interlock sensor

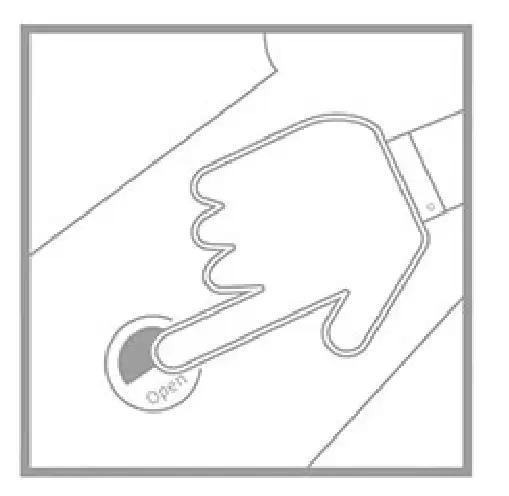

One button to open

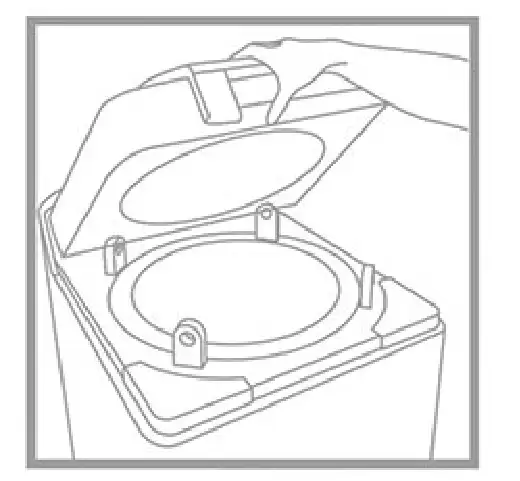

Slightly lift up
Features
SafetyAlways prioritized safety since its establishment, adhering to the highest industry standards and providing multiple safety guarantees from design, manufacturing,use,application to service.
1. Triple protection for lack of water
The bottom of the sterilization chamber is equipped with three different dry burning protection devices:liquid expansion type, copper temperature sensing type, and electric ion type (water level sensor), to avoid misjudgment caused by a single method.
2. Saturated steam monitoring
The system automatically monitors the purge out of cold air to ensure the pure steam environment
3. Humanized design
The lid and bench corners are covered with insulation to avoid getting scald
4. Auto troubleshooting
System will monitor the working status, and will cut the power, send out alarm, and report the error information once any abnormal situation detected
5.Electrical protection
Prevention for overcurrent,short circuit and electricity leakage
6.Cooling LOCK open temperature
Each program can set different lid OPEN temperatures,especially for liquid programs ,so as to prevent users from opening the lid and causing burns when the articles are still in a high temperature state.
7.Evenly distributed interlock
Evenly distributed interlock device is safer and more reliable than ordinary interlocking devices
8.Real time monitor
System will monitor the lid locking, pressure and temperature status on a real time basis to guarantee the safe and successful work of the autoclave
9.Double protection for over pressure
Mechanical pressure gauge and electric sensing system, once pressure is abnormal, system will cut power, release the pressure and send out an alarm
10.Safety test function
Regular testing of system security and safety protection measures is possible
11.Temperature monitor
Power cut and alarming sent, if there is temperature is too high or temperature rising is abnormal
12. One button to open
Press slightly to close, one button to open ( if not safe inside, can not open)
Note: Requirements for sterilization water: distilled water (conductivity not less than 3 p S/em)
When configured as an S biosafety type, a condenser is standard Spare parts
Note :Baskets can also be customized, as well as melting and warming temperature range
Advanced
Colorful LCD screen
LCD screen with English and Chinese choice,using text, data, and graphical methods to dynamically display various statuses, the sterilization process is clear at a glance.
Data reading and curve conversion
Provide USB interface for easy reading or storage of sterilization data. The sterilization data is converted into curves for case data analysis.
6 level of exhaust speed control
After sterilization,you can choose different exhaust speed, and you can adjust it freely at any time of exhausting
Auto drainage/Auto cleaning (option)
Added with a water pump, press the drainage button
to start drainage, or set it to timed automatic drainage.Automatic cleaning can be set to regular cleaning or cleaning after each sterilization cycle.
5 level access permission
The operation permissions for instruments are divided into five levels, with each level of user
having an independent password and multiple IDs that can be assigned. Each level of user has
limited access to certain usage permissions
Sterilization record storage
Built in large capacity memory, can store 999 sterilization cycles and can be queried, printed
or exported for easy traceability management
FO value calculation
FO value is automatic calculated, can print out by micro-printer
Air inlet filter
Filtration is higher than 99.99% in particles with a diameter of 0.2 μm.
Drying
Fully automatic drying: Equipped with an air pump and a 0.2μm air filter, it automatically starts drying after sterilization. After sterilization, clean air will be put in to replace the wet air inside, so as to improve drying efficiency.
Auto water fill
Equipped with automatic water feeding function, standard is with 28L water tank at the back to store water, option is direct water supply by pipe connection from water source while manufacturing.
Condenser(Option)
Equipped with a professional condenser, the steam generated during the sterilization process is converted into water through the condenser, achieving zero discharge of water vapor/mist.
Intelligent
1.App control (Option)
Download the APP software on your mobile phone, which can monitor the sterilization process in real-time,Query historical data, alarm information, etc.
2.Program memory storage system
Users can set their own program, and save it in the system.
3.Saturated steam monitoring
The system automatically monitors the purge out of cold air to ensure the pure steam environment
4.Calibration port
Offer temperature and pressure interface, together with the 3Q adapter joints, can insert max 15 sensors one time to do the calibration work.
5.Special software for drug packaging materials (option)
The product meets the 2020 Chinese Pharmacopoeia or EP10.2 standards.
Humanization
1.Just right depth
Conforming to ergonomics, the chamber depths of 29/54/88/120/150L Chamber are 394/726/733/658/819(mm) making it easy to take and place samples and maintain the instrument
2.Front water tank
Front water tank, easy to plug in and out
Accessories For Purchase
| images | name | description |
 | Micro printer | To print temp. time and FO value |
Printing set:printer+digital
pressure sensor:can print temp.and pressure in data and flowchart way
pressure sensor:can print temp.and pressure in data and flowchart way
(3Q)adapter joint
