HEPA Filtered Clean Booths BEM1CD2 (BAIP-202)
Clean Booth (down Flow Booth)- Sea, Air, Door to Door Shipping
- 1 Year Warranty
- US & European Standards
Specifications
| Model | BEM1CD2 |
| External Size (W*D*H) | 3000*2000*2530mm |
| Internal Size (W*D*H) | 2920*1880*2115mm |
| HEPA Filter | 99.995% efficiency at 0.3μm |
| Consumption | 1500W |
| FFU Nos. | 6pcs |
| Clean Level | ISO 5(Class100),Class A |
| Control System | Microprocessor control system |
| Rectangular Tube Material | Aluminium alloy |
| Wall Material | Anti-static dustproof curtain |
| Blower | Built-in centrifugal blower,speed adjustable |
| UV Lamp | 40W*2Emission of 253.7 nanometers with UV timer |
| lllumination Lamp | 16W*2LED lamp, Illumination: ≥300lux |
| Air Velocity | 0.1~0.6m/s,average 0.45m/s |
| Noise | ≤75db |
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz |
| Gross Weight | 670kg |
| Net Weight | 265kg |
| Package Size(W*D*H) | 3080*980*1280mm3080*660*550mm |
Description
Clean booth is a kind of air purifying equipment providing partial high clean environment, It's the easiest and fastest way to build a simple clean room. Equipped with a lot of clean level and space collocation, it can be designed as request. Main characteristics: simple use, good flexibility, easy installation, short construction time, and movable. It can be installed in part of clean room of general level which requires high cleanliness to save cost.Features

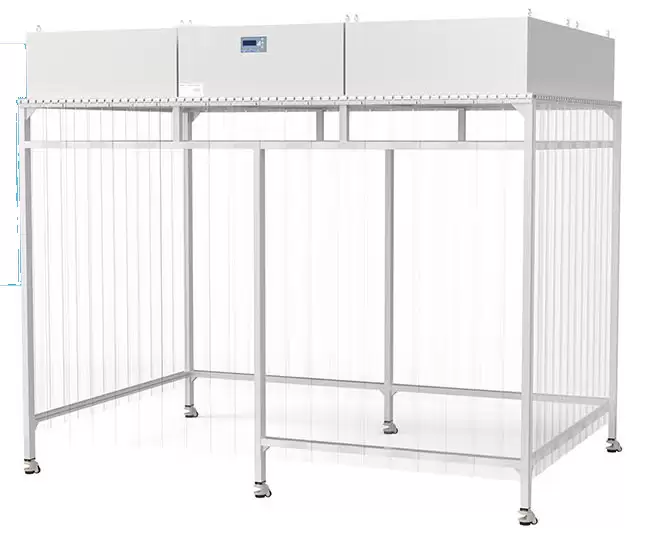

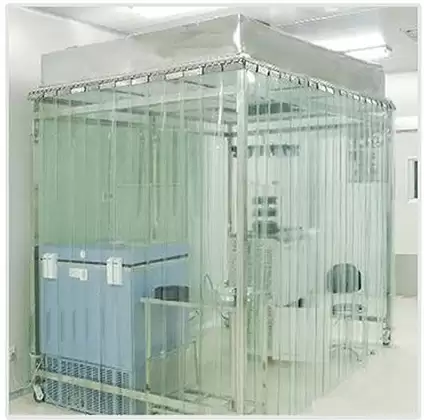

Reference Picture
Design Drawing
Microprocessor Control, user can control the fan, light, UV and adjust the velocity with it.
FFU(Fan Filter Unit), which draws in contaminated air from the top of the module, and exhausts filtered clean air vertically in a undirectional (laminar) air stream at its base, is a self-contained fan and filter module for clean room applications.
Soft Wall Material, PVC anti-static dustproof curtain.
1. Customized design is welcomed.
2. It can be used singly or combined.
3. Compared with civil type and fabricated type clean room of hundred clean level, it has low running cost and fast effect and can be easily installed.
4. Modular construction, easy to increase clean level, good expansion and reusable, convenient movement (Universal wheel can be installed).
