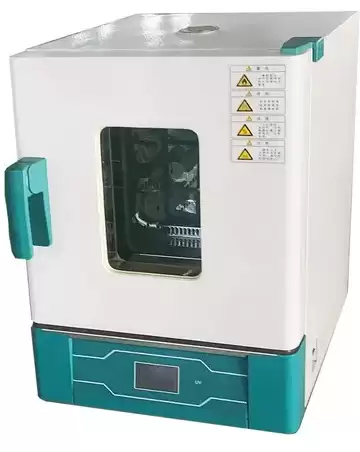

Drying Oven BER1G1

Portable Drying And Sterilizing Oven

• Sea, Air, Door to Door Shipping
• 1 Year Warranty
• US & European Standards

Specifications

Model	BER1G1
Cycle Mode	Forced convection
Function
--Temp. Range	RT+10-300°C
--Temp. Resolution Ratio	0.1°C
--Temp. Motion	±1°C
--Temp. Uniformity	±2.5%
Structure
--Inner Chamber	Mirror stainless steel
--Quter Shell	Cold rolling steel electrostatic spraying exterior
--Insulation Layer	High quality rock wool board
--Heater	Stainless steel heater
--Power Rating	0.8kW
--Exhaust Hole	Φ35mm top(with function of test hole)
Controller
--Temp. Control Mode	Two temperature section PID intelligent
--Temp. Setting Mode	3.5 inch touch screen
--Temp. Display Mode	Touch screen preset 4 mode settings, select a good mode to set the temperature time
--Timer	0-9999min(with timing wait function)
--Operation Function	Fixed temperature operation, fixed timing operation, auto stop.
--Additional Function	Over temperature sound-light alarm, Sensor deviation correction temperature overshoot ,self-tuning, power-off parameter memory
--Sensor	PT100
Safety Device	Over temperature alarm and cut off heating
Specification
--Inner Chamber size(W*L*H)(mm)	310*310*310
--Exterior Size (W*L*H)(mm)	450*500*690
--Packing Size (W*L*H)(mm)	540*575*855
--Volume	30L
--Max. Shelf Number	6
--Load Per rack	15kg
--Shelf Space	35mm
--Power Rating (50/60HZ)	AC220V/3.6A
--NW/GW (kg)	33/37
Accessory
--Shelf	2
--Shelf Frame	4
Optional accessories	Spare shelf, RS485 Communication Interface

Features

1. Horizontal air circularly by double s ducts, high efficiency and high uniformity.
2. 3.5 inch touch screen controller, two temperature section PID intelligent. Preset 4 operating temperatures, the temperature can be edited, select the mode, click run, run automatically, stop
automatically , operation is convenient.
3. Over temperature sound-light alarm,Sensor deviation correction, temperature overshoot self-tuning, power-off parameter memory.

Applications

Used for industrial and mining enterprises, scientific research institute, laboratory drying in hospital health and other units, drying of dental instruments,sterilization.
