Dispensing Booth BEM1CE3 (BAIP-105)

Dispensing Booth (sampling And Weighing Booth)
  • Sea, Air, Door to Door Shipping
  • 1 Year Warranty
  • US & European Standards



Dispensing Booth ISO 5 (Class 100), Class A 99.995% efficiency at 0.3μm

Specifications

ModelBEM1CE3
Clean LevelISO 5 (Class 100), Class A
HEPA Filters99.995% efficiency at 0.3μm
Air volumeSupply air volume: ≤7500m³/h, Exhaust air volume: ≤2250m³/h, Adjustable
MaterialFully stainless steel
Air Velocity0.3~0.6m/s, adjustable
Pressure Gauge3 pcs
Noise≤75dB
UV Lamp30W*2Emission of 253.7 nanometers, with UV timer
llluminating Lamp16W*2&14W*4LED lamp, Illumination: ≥500lux
Power SupplyAC220V±10%, 50/60Hz; 110V±10%, 60Hz
Consumption1700W
Sockets2pcs
Work Area Size(W*D*H)2400*1800*2000mm
External Size(W*D*H)2500*2400*2400mm
Gross Weight840kg
Package Size(W*D*H)2640*960*2380mm2640*780*680mm2640*560*2250mm

Description

Dispensing booth is a kind of partial purifying equipment for filling, refilling, weighing and sampling of raw material and compounds. It is provided with HEPA filter, which prevents the airborne dusts by down draught technique. The unit eliminates powder contamination to protect the operator and the surrounding environment. Dispensing booth is also called sampling booth or weighing booth.

Features

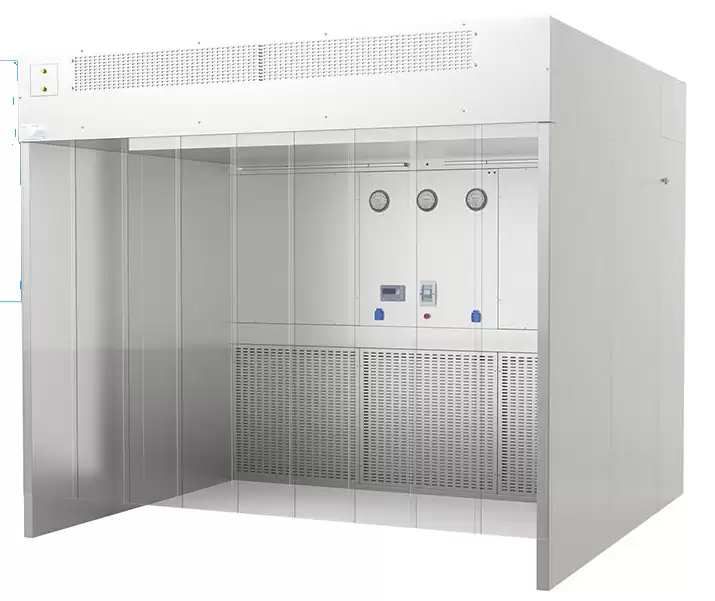

Reference Picture
Reference Picture Dispensing Booth ISO 5 (Class 100), Class A 99.995% efficiency at 0.3μm

Reference Picture
Reference Picture Air Flow Pattern Dispensing Booth ISO 5 (Class 100), Class A 99.995% efficiency at 0.3μm
Air Flow Pattern
Reference Picture Air Flow Pattern Dispensing Booth ISO 5 (Class 100), Class A 99.995% efficiency at 0.3μm

Differential Pressure Gauge, Dwyer make Magnehellc gauges drop iHseEd PtAo far 0500 th Pa.
Differential Pressure Gauge, Dwyer make Magnehellc gauges drop iHseEd PtAo far 0500 th Pa. Dispensing Booth ISO 5 (Class

LCD Display, Microprocessor control system

Dispensing Booth ISO 5 (Class 100), Class A 99.995% efficiency at 0.3μm

Soft Wall Material, PVC anti-static dustproof curtain.

1. Customized design is welcome. 2. Unique designed air duct effectively controls the noise. 3. Smooth transitions of wall


1. Customized design is welcome.
2. Unique designed air duct effectively controls the noise.
3. Smooth transitions of wall and ground can eliminate the blind angle.
4. Differential pressure gauge is equipped to real-time monitor the filters.
5. Intelligent control mode and alarm system ensure the reliability of running.
6. Automatic changeable frequency system monitors the air velocity to ensure its stability in the work area.
7. Uniform flow design of main working area can protects the operators and prevent environmental pollution and cross contamination of products.
8. Dispensing Booth(Sampling or Weighing Booth) has primary filters, medium efficiency filters and HEPA filters to keep air cleanliness of work area.
