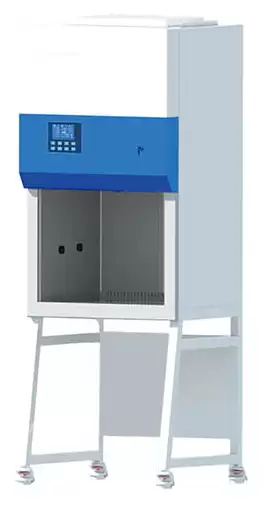

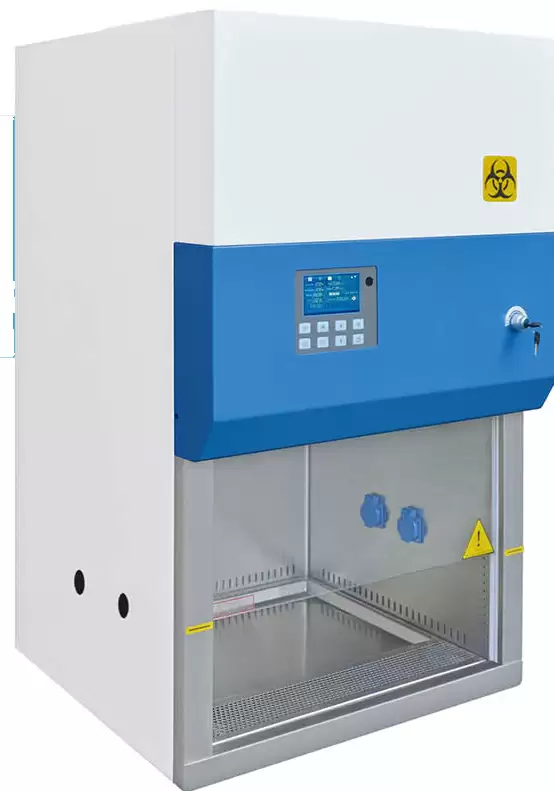

Class II Biosafety Cabinet BEM1G1 (BCBS-301)
Class Il A2 Biological Safety Cabinet, Class Ii A2 Biological Safety Cabinet- Sea, Air, Door to Door Shipping
- 1 Year Warranty
- US & European Standards
Specifications
| Model | BEM1G1 |
| External Size(W*D*H) | 700*650*1230mm(without base stand) |
| Internal Size(W*D*H) | 600*500*540mm |
| Tested Opening | Safety height 200mm(8") |
| Max Opening | 370mm(15") |
| Inflow Velocity | 0.53±0.025m/s |
| Down Flow Velocity | 0.33±0.025m/s |
| HEPA Filter | Two, 99.995% efficiency at 0.3μm. Filter life indicator |
| Front Window | Motorized. Single Layer toughened glass 5mm. Anti UV. |
| Noise | ≤67dB |
| UV Lamp | 18W*2UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination |
| LED Lamp | 8W*2 |
| Illumination | ≥1000Lux |
| Consumption | 700W |
| Socket | Two, total load of two sockets: 500W |
| Display | LCD display |
| Control System | Microprocessor |
| Airflow System | 70% air recirculation, 30% air exhaust |
| Visual and Audio Alarm | Filter replacement, window over height, abnormal air flow velocity, High filter pressure alarm |
| Material | Work Zone: 304 stainless steelMain Body: Cold-rolled steel with anti-bacteria powder coating |
| Work Surface Height | 750mm with optional base stand |
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz |
| Standard Accessory | LED lamp*2, UV lamp*2, Remote control, Waterproof sockets*2,Base stand |
| Optional Accessory | SS Water tap*1, SS Gas tap*1, Base stand |
| Packing Size(without base stand) | Carton: 730*787*1450mmWood: 860*780*1420mm |
| Gross Weight(without base stand) | Carton: 120kgWood: 140kg |
| Package Size(with base stand) | Carton: 850*787*1450mmWood: 860*970*1420mm |
| Gross Weight(with base stand) | Carton: 140kgWood: 160kg |
Features
Button Screen, Large LCD display is easy to monitor all the safety parameters at glance;and ergonomically sized control panel improve users interface.
Work zone, is made of 304 stainless steel, is surrounded by negative pressure.
Waterproof Socket, 2 waterproof sockets Emission of 253.7 are located in the side nanometers for most panel, for optimum efficient convenience of using decontamination. small devices inside the cabinet.
Remote Control, all functions can be realized with it, making the operation much easier and convenient.
UV Lamp, Emission of 253.7 nanometers for most efficient decontamination.
1. Small dimension, save space.
2. Centrifugal fan, speed adjustable; H14 HEPA filter.
3. Motorized front window: The front window is motorized for convenient, one-hand operation.
4. Audio and visual alarm:Abnormal airflow velocity,Filter replacement,Front window at unsafe height,High filter pressure alarm.
5. Time reserve function: This can save 30 minutes waiting time after activating the cabinet and the sterilization time
after experiment.
6. Remote control: Each function can be realized 6 meters away from the cabinet by remote control, which can protect
the operator under emergency.
7. Large LCD display: Operators can check detailed status of the cabinet, such as inflow and downflow velocity, work
area temperature and humidity, filter pressure, UV working time and filter working time, filter life indicator etc.
8. With memory function in case of power-failure.
9. Interlock function: UV lamp and front window; UV lamp and blower, LED lamp; blower and front window.
