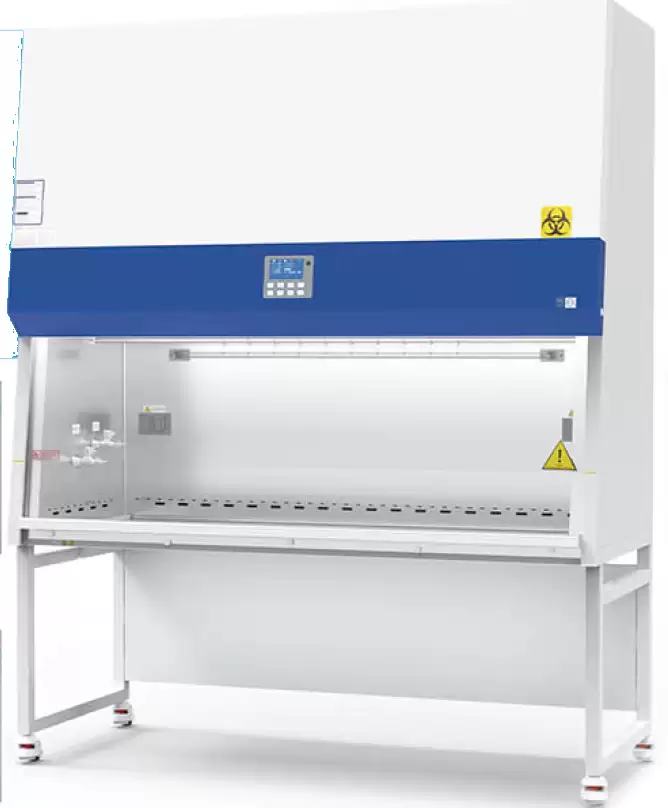

Class II Biosafety Cabinet BEM1F6 (BCBS-703)
Nsf Certified Class Il A2 Biological Safety Cabinet, Nsf Certified Class Ii A2 Biological Safety Cabinet- Sea, Air, Door to Door Shipping
- 1 Year Warranty
- US & European Standards
Specifications
| Model | BEM1F6 |
| External Size(W*D*H) | 1873*775*2295mm |
| Internal Size(W*D*H) | 1700*600*660mm |
| Work SurfaceHeight | 750mm with optional base stand |
| Max Opening | 550mm (22") |
| Tested Opening | Safety height 254mm(10") |
| Airflow Volume Inflow | 824m³/h(485cfm) |
| Airflow Volume Downflow | 60%: 1212m³/h(713cfm) |
| Airflow Volume Exhaust | 40%: 824m³/h(485cfm) |
| Front Window | Motorized. Two-layer laminated toughened glass≥6mm. Anti UV |
| HEPA Filter | Two, 99.995% efficiency at 0.3μm, filter life indicator |
| Filter Guard Type | Aluminium alloy frame, glass fibre filter paper |
| Noise | NSF 49≤67dB |
| Illumination | ≥1000Lux |
| Display | LCD Display |
| Waterproof Socket | Two, total consumption: ≤500W |
| Tap | Water tap*1, Gas tap *1 |
| Ground Resistance | ≤ 0.10Ω |
| Power Supply | AC230V, 50/60Hz; AC115V, 60Hz, Full load Amps: 9A, BTU/Hr: 1689 |
| Consumption | 700W |
| Alarm | Abnormal airflow velocity, Filter replacement, Front window at unsafe height, High filter pressure alarm |
| DC Motor | One ECM motor, 115V&230V acceptable, speed adjustable, high efficiency and low power consumption |
| Material | Working area: 304 stainless steelFrame and decorative plate: cold-rolled steel with anti-bacteria powder coating |
| UV Lamp | 40W |
| Germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination | |
| Illuminating Lamp | 22W*2 |
| LED lamp | |
| Standard Accessory | LED lamp*2, UV lamp*1, Base stand, SS water tap*1, SS gas tap*1, Drain valveWaterproof sockets*2, Stainless Steel IV Bar with 10 hooks, Remote control |
| Optional Accessory | Armrest, Airflow tester, Formalin fumigation sterilizer, Infrared sterilizer, Electric height adjustable base stand |
| Package Size(W*D*H)mm | 2020*1080*1900mm |
| Gross Weight(kg) | 370kg |
Features
Exhaust Thimble Canopy (Optional)
Wind Speed Sensor
Footmaster Caster, universal caster with break and leveling feet.
SS Water Tap and Gas Tap
Stainless Steel LV. Bar with 10 hooks
Front Window, Two-layer laminated toughened glass, >6mm Anti- UV
Work Zone, Unibody design
Waterproof Socket
UV Lamp, Emission of 253.7 nanometers for most efficient decontamination.
1. Motorized front window.
2. Large LCD display, all information displayed.
3. Automatic air speed adjustable with filter block.
4. With memory function in case of power-failure.
5. Side & back wall is made up of single piece stainless steel.
6. Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.
7. Front 10°slanted to offer operator comfort while working for long time, reduce glare and maximize reach into the
work area.
