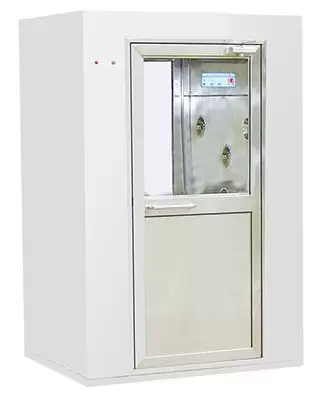

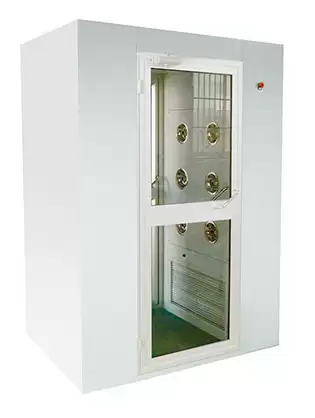

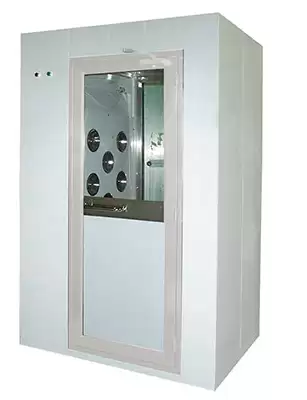

Air Shower BEM1CK2 (BASB-102)

Air Shower
  • Sea, Air, Door to Door Shipping
  • 1 Year Warranty
  • US & European Standards



Air Shower 1500*1000*2050mm 800*900*1930mm Air Shower 1500*1000*2050mm 800*900*1930mm Air Shower 1500*1000*2050mm 800*900*1930mm

Specifications

ModelBEM1CK2
External Size(W*D*H)1500*1000*2050mm
Internal Size(W*D*H)800*900*1930mm
HEPA Filter99.995% efficiency at 0.3μm
Spraying Wind Speed25m/s
Air Shower Time0~99s(adjustable)
No.of SS Nozzles12
Fluorescent Lamp12W*1
Consumption1100W
Cabinet Material (Optional)1. Full cold-rolled steel with powder coating.2. Internal stainless steel, external with cold-rolled steel.3. Full stainless steel.
Door Material (Optional)1.Cold-rolled steel with powder coating.2. Stainless steel.
ChassisStainless steel.
Power SupplyAC220V±10%, 50/60Hz; 110V±10%, 60Hz
Gross Weight400kg
Package Size(W*D*H)1600*1200*2200mm

Features

1. Photoelectric sensor, automatic blowing.
2. Adopt with circulation wind to ensure the cleanness of shower area under non-shower status.
3. Double doors by electric interlock.
4. LED display with adjustable blowing time (0~99s).
5. HEPA Filter, Class 100 cleanness.

Applications

Air shower is a necessary passage for people entering clean room in order to minimize the amount of particulate contaminant, to achieve workplace strict clean purification standards. Personnel move through the air shower while particulate contaminants are blown off by the clean high-speed air. Then the dust cannot be brought into clean area.
