Vaccum Pump BVAP-303
- Sea, Air, Door to Door Shipping
- 1 Year Warranty
- US & European Standards
- Low noise, high efficiency
- Two-stage vacuum pump control technology with lower noise, higher vacuum, higher pumping efficiency, for BV series
- The vacuum drying time is around 2-4 mins.
- Clean and reliable
Specification
Features
| Ultimate partial pressure gas ballast close | 4x10 - 2 Pa |
| Utimate total pressure gas ballast close | 4x10 - 1 Pa |
| Utimate total pressure gas ballast open | 8x10 - 1 Pa |
| Power supply | Single/Three-Ph |
| Power rating | 0.55 kW |
| Level of protection | IP44 |
| Intake and exhaust | KF 25 |

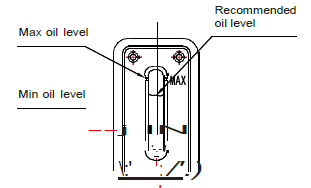

| Oil capacity | 0.9 - 1.5 L |
| Motor speed (50/60Hz) | 1440 /1720 rpm |
| Ambient temperature | 10 - 40 °C |
| Noise level (50Hz) | ≤58 dB |
| Weight | 30 Kg |
| Dimension(WxDxH) | 530x188x272 mm |
| Flow of Vacuum pump | 4 L/S |
- Low noise, high efficiency
- Two-stage vacuum pump control technology with lower noise, higher vacuum, higher pumping efficiency, for BV series
- The vacuum drying time is around 2-4 mins.
- Clean and reliable
- Double anti-return oil structure to more reliably protect the vacuum system from oil pollution after shutdown
- It adopts imported German oil seal and seals with fluororubber material to improve corrosion resistance and prevent oil leakage
- Adopting the aviation technology bushing treatment process, the life of the exhaust valve piece reaches 10 billion times
- It adopts high-quality materials such as vacuum pump oil imported from Japan, which makes the operation more reliable and has a longer service life
