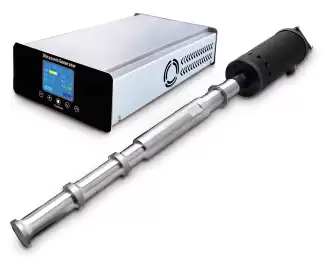

Ultrasonic Cleaner BJR-1002
Industrial Ultrasonic Extraction System
Ultrasonic extractor and disruptor is a powerful and multifunctional ultrasonic equipment. It uses the principle of ultrasonic energy concentration to produce high intensity and cavitation effect in liquid, which is suitable for the disruption of various cells and viruses, as well as emulsification, separation,extraction and other operations.lt is widely...
- 1. Intelligent automatic frequency tracking ultrasonic generator,real-time frequency tracking,to ensure that the ultrasonic wave is in the best effect range;
- 2. 20KHz 2600W high-power transducer, low impedance, high conversion efficiency,strong amplitude;
- 3. Titanium alloy extraction application tool head has high conversion efficiency and long service life;
- 4. PLC or RS485 control function,with error output port;
Old SKU: BJR1K2
Get Quote
Download Catalog
Specifications
| Model | BJR-1002 |
| Working frequency (Khz) | 19.90±0.8 |
| Ultrasonic Power (W) | 2600 |
| Working Voltage (V) | 220±10% |
| Working Diameter (mm) | 50 |
Features
1. Intelligent automatic frequency tracking ultrasonic generator,real-time frequency tracking,to ensure that the ultrasonic wave is in the best effect range;
2. 20KHz 2600W high-power transducer, low impedance, high conversion efficiency,strong amplitude;
3. Titanium alloy extraction application tool head has high conversion efficiency and long service life;
4. PLC or RS485 control function,with error output port;
5. Abnormal protection of frequency, power, transducer current,etc.
6. Titanium alloy tool heads are used for laboratory sample extraction and crushing, with high.
Rapid extraction
Widely used
Simple operation
Low cost
2. 20KHz 2600W high-power transducer, low impedance, high conversion efficiency,strong amplitude;
3. Titanium alloy extraction application tool head has high conversion efficiency and long service life;
4. PLC or RS485 control function,with error output port;
5. Abnormal protection of frequency, power, transducer current,etc.
6. Titanium alloy tool heads are used for laboratory sample extraction and crushing, with high.
Rapid extraction
Widely used
Simple operation
Low cost
Applications
Fragmentation of cells, bacteria, viruses and other cellular structures;
Homogeneous soil and rock samples;
Preparation of DNA fragmentation in high-throughput sequencing and chromatin
immunoprecipitation.
Study the structural and physical characteristics of rocks:
Dispersion of pharmaceutical substances for injection;
Ultrasound to homogenize beverages:
Dispersion and extraction of Chinese herbal medicine;
Cracking, emulsification, homogenization and crushing of particulate matter such
as carbon nanotubes and rare earth materials;
Speed up the dissolution and speed up the chemical reaction, for example for the
processing of oils and fats.
Homogeneous soil and rock samples;
Preparation of DNA fragmentation in high-throughput sequencing and chromatin
immunoprecipitation.
Study the structural and physical characteristics of rocks:
Dispersion of pharmaceutical substances for injection;
Ultrasound to homogenize beverages:
Dispersion and extraction of Chinese herbal medicine;
Cracking, emulsification, homogenization and crushing of particulate matter such
as carbon nanotubes and rare earth materials;
Speed up the dissolution and speed up the chemical reaction, for example for the
processing of oils and fats.
