Medical Biological Safety Cabinets BEM1CO3 (BPCR-203)

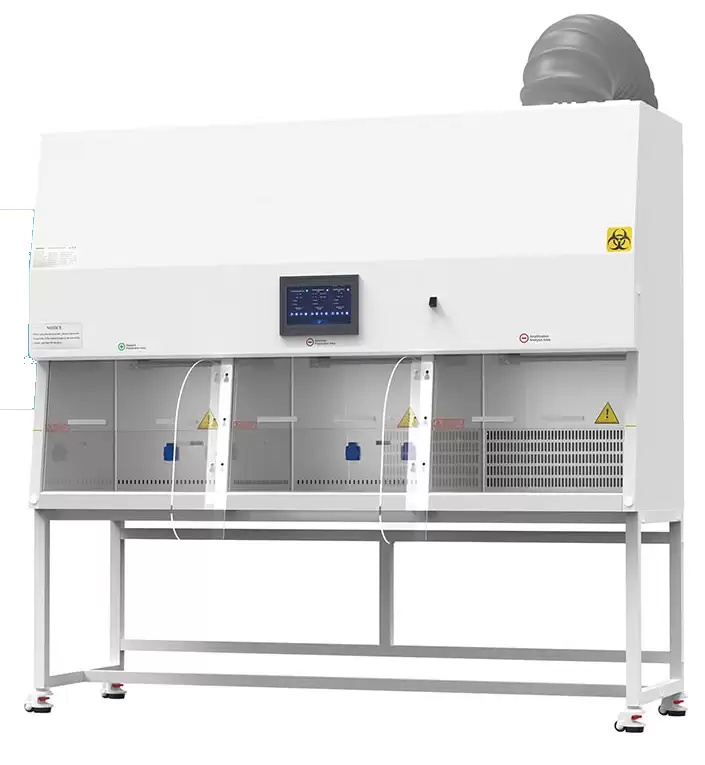

Mini Pcr Workstation

• Sea, Air, Door to Door Shipping
• 1 Year Warranty
• US & European Standards

Specifications

Model	BEM1CO3
External Size(L*W*H)mm	2500*850*2100mm
Reagent Preparation Area Operating Area Size (L*W*H)	640*560*610
Reagent Preparation Area Pressure	Positive
Reagent Preparation Area Airflow Velocity (m/s)	0.3~0.45
Reagent Preparation Area Airflow Volume (m?/h)	380~560
Reagent Preparation Area Exhaust Type	/
Specimen Preparation Area Operating Area Size (L*W*H)	1060*560*610mm
Specimen Preparation Area Pressure	Negative
Specimen Preparation Area Airflow Velocity (m/s)	Downflow: 0.33±0.025, Inflow: 0.53±0.025
Specimen Preparation Area Airflow Volume (m?/h)	400
Specimen Preparation Area Exhaust Type	TypeA2, 30% exhaust, 70% recirculation
Amplification Analysis Area Operating Area Size (L*W*H)	640*560*610mm
Amplification Analysis Area Pressure	Negative
Amplification Analysis Area Airflow Velocity (m/s)	≥0.4
Amplification Analysis Area Airflow Volume (m?/h)	≥180
Amplification Analysis Area Exhaust Type	100% exhaust
ULPA Filter	Four, 99.999% efficiency at 0.12μm
Clean Level	Class 100, Except Amplification Analysis Area
Front Window	Manual, Toughened glass, Anti UV
Max Opening	480mm
Noise	≤67dB(A)
Vibration	≤5μm
UV Lamp	30W*1,15W*2
LED Lamp	8W*4,12W*2
Illumination(Ix)	≥650(Each area)
Sockets	The load of two sockets (Each area): 500W, total 6 sockets
Display	Touch Screen
Control System	Microprocessor
Visual and Audio Alarm	Filter replacement, window over height, abnormal air flow velocity
Work Surface Height	750 mm
Material	Work Zone: 304 stainless steelMain Body: Cold-rolled steel with anti-bacteria powder coating
Power Supply	AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Consumption	1000W, total 2500W
Standard Accessory	LED lamp*6, UV lamp*4, Windproof plate*2, Waterproof sockets*6
Package Size(W*D*H)	2650*1120*1400mm
Gross Weight	500kg

Description

The Mini PCR Workstation is the world's exclusive nucleic acid detection workstation, specially developed for fever clinics and small clinical laboratories. Integrate traditional PCR laboratory functions into one device. Allow more small laboratories to have PCR detection capabilities.

Features

LCD Display: 1. Large Digital LCD display is easy to monitor.
2. All the safety parameters at a glance and ergonomically sized control panel improves user interface.


UV Lamp: 1. Emission of 253.7 nanometers for most.
2. Efficient decontamination.


Work Zone, Work zone is made of 304 stainless steel, Unibody design.


Front Window, Toughened glass>5mm, anti UV.


Waterproof Socket, 2 waterproof sockets are located in the each area, for optimum convenience of using small devices inside the cabinet.


Windproof Plate, Effectively isolate the cross-effects of airflow in various areas.



1. Global exclusive
2. Small dimension, save space, economical and convenient.
3. Automatic air speed adjustable with filter block.
4. With memory function in case of power-failure.
5. Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.
6. Audio and visual alarm: Filter replacement, window over height, abnormal air flow velocity etc.
7. Time reserve function: This can set the UV lamp and fan working time.

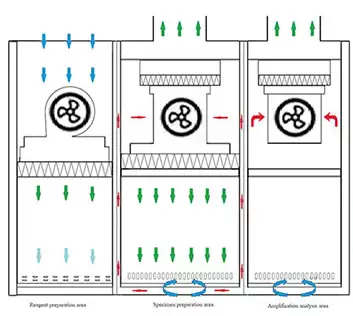

Reagent Preparation Area:
Positive pressure, vertical laminar flow design, equipped with primary filter and HEPA filter, which can protect the reagent preparation from external pollution and protect the reagent.
Specimen Preparation Area:
Negative pressure; the air inlet is through the front window glass door, the bottom of the operation area is returned to the air, and the top is exhausted; the upper and lower two HEPA filters are equipped to protect personnel from harmful aerosol infection and protect samples from external pollution.
Amplification Analysis Area:
Negative pressure, the air inlet is through the front window glass door, the bottom of the operation area is returned to the air, and the top is exhausted, and the HEPA filter can protect both the personnel and the environment.

More Info

Mini PCR Workstation Equipment List:

Item	Name	Model	Quantity
Reagent preparation area	Pipette Pipette Pipette Centrifuge Mixer Tips Centrifuge tube 8-strip tube QPCR kit	0.5-10ul 10-100ul 100-1000ul MINI-7 ;BJPX-VW; 10ul,100ul, 1000ul 1.5ml 0.2ml Covid-19	1 1 1 1 1 / / / /
Specimen preparation area	Pipette Pipette Pipette Disposable Virus Sampling Collector (One Step method) Tips Centrifuge tube Centrifuge Mixer Nucleic Acid Extraction System	0.5-10ul 10-100ul 100-1000ul / 10ul,100ul, 1000ul 1.5ml MINI-7 ;BJPX-VW; ;BNP32; or ;BNPS;	1 1 1 / / / 1 1 1
Amplification analysis area	QPCR	;LEIA-X4;	1
Other related equipment	Biosafety Transport Box -25°C Freezer -86°C Freezer	;BTB-L5; ;BDF-25V270; ;BDF-86V158;	1 1 1

Applications

It is suitable for rapid nucleic acid detection in the fever clinic and emergency department of hospital, other small clinical laboratories.

Accessories For Purchase

images	name	features	specifications

Control Button


Footmaster Caster

Electric Height Adjustable Base Stand
1. Heavy load and smart balance
2. Smooth running speed and low noise
3. Concise and easy with nice appearance
4. Low maintenance cost
5. Easy to install and disassemble
6. Max Adjustable Route 400 mm
7. Width adjustable is customized
8. Multipurpose for laboratory apparatus.
Max Route (mm)100
Height of Base Stand Min. Height(mm)440
Height of Base Stand Max. Height(mm)540
Max Load400kg
Load Speed5mm/s
'Working Frequency10%, max continuous working time is 2 minutes
Noise<65dB
Work Temperature-26°C~65°C
MaterialPedestal: 3.0mm steel Lifting Rod: Aluminium alloy
Power SupplyAC220V±10%, 50/60Hz; 110V±10%, 60Hz
Controller Consumption100~200W
CasterFootmaster Caster
ApplicationsFor biosafety cabinet, laminar flow cabinet, fume hood and other laboratory equipment

images	name	features	specifications

Control Button


Footmaster Caster

Electric Height Adjustable Base Stand
1. Heavy load and smart balance
2. Smooth running speed and low noise
3. Concise and easy with nice appearance
4. Low maintenance cost
5. Easy to install and disassemble
6. Max Adjustable Route 400 mm
7. Width adjustable is customized
8. Multipurpose for laboratory apparatus.
Max Route (mm)
150
Height of Base Stand Min. Height(mm)
490
Height of Base Stand Max. Height(mm)
640
Max Load
400kg
Load Speed
5mm/s
'Working Frequency
10%, max continuous working time is 2 minutes
Noise
<65dB
Work Temperature
-26°C~65°C
Material
Pedestal: 3.0mm steel
Lifting Rod: Aluminium alloy
Power Supply
AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Controller Consumption
100~200W
Caster
Footmaster Caster
Applications
For biosafety cabinet, laminar flow cabinet, fume hood and other laboratory equipment

images	name	features	specifications

Control Button


Footmaster Caster

Electric Height Adjustable Base Stand
1. Heavy load and smart balance
2. Smooth running speed and low noise
3. Concise and easy with nice appearance
4. Low maintenance cost
5. Easy to install and disassemble
6. Max Adjustable Route 400 mm
7. Width adjustable is customized
8. Multipurpose for laboratory apparatus.
Max Route (mm)
200
Height of Base Stand Min. Height(mm)
540
Height of Base Stand Max. Height(mm)
740
Max Load
400kg
Load Speed
5mm/s
'Working Frequency
10%, max continuous working time is 2 minutes
Noise
<65dB
Work Temperature
-26°C~65°C
Material
Pedestal: 3.0mm steel
Lifting Rod: Aluminium alloy
Power Supply
AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Controller Consumption
100~200W
Caster
Footmaster Caster
Applications
For biosafety cabinet, laminar flow cabinet, fume hood and other laboratory equipment

images	name	features	specifications

Control Button


Footmaster Caster

Electric Height Adjustable Base Stand
1. Heavy load and smart balance
2. Smooth running speed and low noise
3. Concise and easy with nice appearance
4. Low maintenance cost
5. Easy to install and disassemble
6. Max Adjustable Route 400 mm
7. Width adjustable is customized
8. Multipurpose for laboratory apparatus.
Max Route (mm
250
Height of Base Stand Min. Height(mm)
590
Height of Base Stand Max. Height(mm)
840
Max Load
400kg
Load Speed
5mm/s
'Working Frequency
10%, max continuous working time is 2 minutes
Noise
<65dB
Work Temperature
-26°C~65°C
Material
Pedestal: 3.0mm steel
Lifting Rod: Aluminium alloy
Power Supply
AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Controller Consumption
100~200W
Caster
Footmaster Caster
Applications
For biosafety cabinet, laminar flow cabinet, fume hood and other laboratory equipment

images	name	features	specifications

Control Button


Footmaster Caster

Electric Height Adjustable Base Stand
1. Heavy load and smart balance
2. Smooth running speed and low noise
3. Concise and easy with nice appearance
4. Low maintenance cost
5. Easy to install and disassemble
6. Max Adjustable Route 400 mm
7. Width adjustable is customized
8. Multipurpose for laboratory apparatus.
Max Route (mm
300
Height of Base Stand Min. Height(mm)
640
Height of Base Stand Max. Height(mm)
940
Max Load
400kg
Load Speed
5mm/s
'Working Frequency
10%, max continuous working time is 2 minutes
Noise
<65dB
Work Temperature
-26°C~65°C
Material
Pedestal: 3.0mm steel
Lifting Rod: Aluminium alloy
Power Supply
AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Controller Consumption
100~200W
Caster
Footmaster Caster
Applications
For biosafety cabinet, laminar flow cabinet, fume hood and other laboratory equipment

images	name	features	specifications

Control Button


Footmaster Caster

Electric Height Adjustable Base Stand
1. Heavy load and smart balance
2. Smooth running speed and low noise
3. Concise and easy with nice appearance
4. Low maintenance cost
5. Easy to install and disassemble
6. Max Adjustable Route 400 mm
7. Width adjustable is customized
8. Multipurpose for laboratory apparatus.
Max Route (mm
350
Height of Base Stand Min. Height(mm)
690
Height of Base Stand Max. Height(mm)
1040
Max Load
400kg
Load Speed
5mm/s
'Working Frequency
10%, max continuous working time is 2 minutes
Noise
<65dB
Work Temperature
-26°C~65°C
Material
Pedestal: 3.0mm steel
Lifting Rod: Aluminium alloy
Power Supply
AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Controller Consumption
100~200W
Caster
Footmaster Caster
Applications
For biosafety cabinet, laminar flow cabinet, fume hood and other laboratory equipment

images	name	features	specifications

Control Button


Footmaster Caster

Electric Height Adjustable Base Stand
1. Heavy load and smart balance
2. Smooth running speed and low noise
3. Concise and easy with nice appearance
4. Low maintenance cost
5. Easy to install and disassemble
6. Max Adjustable Route 400 mm
7. Width adjustable is customized
8. Multipurpose for laboratory apparatus.
Max Route (mm
400
Height of Base Stand Min. Height(mm)
740
Height of Base Stand Max. Height(mm)
1140
Max Load
400kg
Load Speed
5mm/s
'Working Frequency
10%, max continuous working time is 2 minutes
Noise
<65dB
Work Temperature
-26°C~65°C
Material
Pedestal: 3.0mm steel
Lifting Rod: Aluminium alloy
Power Supply
AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Controller Consumption
100~200W
Caster
Footmaster Caster
Applications
For biosafety cabinet, laminar flow cabinet, fume hood and other laboratory equipment

images	name	features
	Air Velocity Meter	Measurement Range: 0~30m/s, Accuracy: ±3% or + 0.015m/s, Resolution: 0.01m/s, Data log 12,700+samples. and 100 test IDs. The 9535 model comes with a telescopic straight probe. The 9535-A model comes with an articulated probe.
	Dust Particle Counter	Particle Size Channel: 0.3, 0.5, 1.0, 3.0, 5.0, 10.0(um), Sampling period: 1-9999s, Number of sampling point: 2~9, Sampling frequency: 2~9, Sampling quantity: 2.83L/min(0.1cfm)
	Digital Sound Level Meter	Accuracy: +1.5dB, Resolution: 0.1dB, Measurement Range: 30-130dB
	Illumination Meter	Light Intensity range: 0-200,000LUX Accuracy: ±3% rdg0.5% f.5. (<10,000lux), ± 4% rdg+10dgts (>10,000lux)
	Foot rest	Humanization design. Material is cold-rolled steel with anti-bacteria powder coating. Can be customized.
	Arm rest	Alleviate fatigue on operator's armsPrevent air obstruction. Adjustable height range: 85~100mm
	Formalin Fumigation Sterilizer	Neutralizar for 8 hours and neutralize the carbonate for 8 hours. Ammonium Hydrogen Carbonate. Sterilize the cabinet with formalin formalin with ammonium hydrogen.
	Laboratory Chair Material	Economy line-artificial leather. Backrest height: 45cm. Height range: 43~57cm.

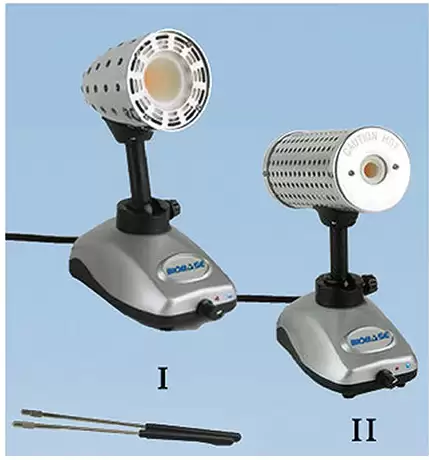

	Infrared Sterilizer	Two types: Type I: 36mm dimension of cavity; Type II: 22mm dimension of cavity Central high-temperature: 930°C:+30°C, Heat-up Time: 20min ~ Size: 150*95"210mm, Package Size (W*D*H): 266*225*145mm, Weight: 1600g Power: 180W, Voltage: 110/220V, 50/60Hz.
