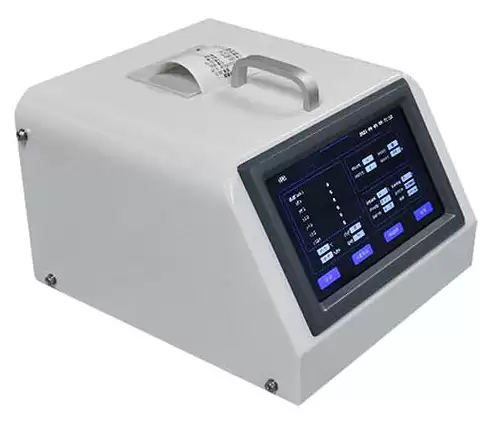

Laser Dust Particle Counter BDL-2201
Laser Dust Particle Counter
- 1. 7-inch touch screen control, friendly interface and convenient operation.
- 2. Calculated by 95% confidence level (UCL), it can directly display particle concentration (particles/m?)
- and purification level.
- 3. 4GB data storage card, data storage management.
- 4. The material of the chassis is cold-rolled steel plate (anti-rust treatment, electrostatic spraying)
- 5. Built-in thermal printer
- 6. Imported semiconductor laser tube and imported semiconductor photosensitive receiver tube.
- 7. The counting result can be converted into cubic meters and cubic feet.
Old SKU: BEM1W1
Get Quote
Download Catalog
Specifications
| Model | BDL-2201 |
| Dimension | 220*280*185mm |
| Sampling Volume | 2.83L/min (0. 1cfm/min) |
| Ambient Temperature | 10~35°C |
| Ambient Relative Humidity | ≤75% |
| Power | 100W |
| Six Particle Size Channels | 0.3μm, 0.5μm,1μm, 3μm, 5μm, 10μm |
| Vacuum Source | Built-in air pump, under control flow |
| Light Source | Semi-conductor laser, more than 30,000h |
| Zero Count | Less than 10min |
| Communication Interface | USB |
| Cleanliness Level Range | ISO5~ISO9 |
| Main Body Material | Cold-rolled steel with powder coated |
| Voltage | 110V/220V, 50/60Hz |
| Optional Parts | Temperature sensor, humidity sensor |
| Packing Size | 500*500*350mm |
| Gross Weight | 11kg |
Features
1. 7-inch touch screen control, friendly interface and convenient operation.
2. Calculated by 95% confidence level (UCL), it can directly display particle concentration (particles/m?)
and purification level.
3. 4GB data storage card, data storage management.
4. The material of the chassis is cold-rolled steel plate (anti-rust treatment, electrostatic spraying)
5. Built-in thermal printer
6. Imported semiconductor laser tube and imported semiconductor photosensitive receiver tube.
7. The counting result can be converted into cubic meters and cubic feet.
2. Calculated by 95% confidence level (UCL), it can directly display particle concentration (particles/m?)
and purification level.
3. 4GB data storage card, data storage management.
4. The material of the chassis is cold-rolled steel plate (anti-rust treatment, electrostatic spraying)
5. Built-in thermal printer
6. Imported semiconductor laser tube and imported semiconductor photosensitive receiver tube.
7. The counting result can be converted into cubic meters and cubic feet.
Applications
The product is widely used in medicine, optics, chemistry, food, cosmetics, electronic health, biological products, aerospace and other fields.
