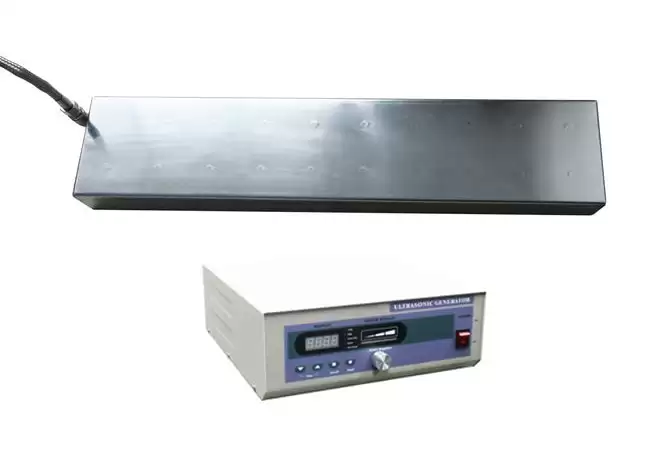

Immersion Ultrasonic Vibration Plate BJR-801
Immersion Ultrasonic Vibration Plate
- 1. Made of thickened SUS304 or SUS316L stainless steel,chrome coated on vibration surface,double pulse welding,stronger sealing performance;
- 2. Automatic frequency tracking, MCU-SWEEP constant power output ultrasonic generator drive, ultrasonic cleaning performance is uniform and strong;
- 3. Adopt industrial grade high Q value transducer, imported high strength glue bonding,ultrasonic cleaning conversion efficiency is higher;
- 4. 24 hours working available,suitable for mass production and continuous work;
- 5. Strict producing and aging process,the whole machine is passed 2500V high voltage testing and CE,FCC,ROSH and so on specifications;
- 6. Different size, power and frequency can be made according to customers actual requirements.
- MCU-SWEEP
- Degassing
Old SKU: BJR1I1
Get Quote
Download Catalog
Specifications
| Model | BJR-801 |
| Ultrasonic Power(W) | 600 |
| Number of transducer(PCS) | 12 |
| Inner tank Dimension (mm) | 350X300X100 |
| Frequency Working (Khz) | 25/28/40/68/80/100132/170/200KHz. |
| Maximum Temperature(°C) | 80°C |
| Material | 304/316L stainless steelThickness:2.0-3.0mmVibrating plate chrome coatedCable length:5m (customised) |
| Working Voltage | 110V10%,60KHz220V10%,50/60KHz |
Features
1. Made of thickened SUS304 or SUS316L stainless steel,chrome coated on vibration surface,double pulse welding,stronger sealing performance;
2. Automatic frequency tracking, MCU-SWEEP constant power output ultrasonic generator drive, ultrasonic cleaning performance is uniform and strong;
3. Adopt industrial grade high Q value transducer, imported high strength glue bonding,ultrasonic cleaning conversion efficiency is higher;
4. 24 hours working available,suitable for mass production and continuous work;
5. Strict producing and aging process,the whole machine is passed 2500V high voltage testing and CE,FCC,ROSH and so on specifications;
6. Different size, power and frequency can be made according to customers actual requirements.
MCU-SWEEP
Degassing
Constant power output
Work-conserving
2. Automatic frequency tracking, MCU-SWEEP constant power output ultrasonic generator drive, ultrasonic cleaning performance is uniform and strong;
3. Adopt industrial grade high Q value transducer, imported high strength glue bonding,ultrasonic cleaning conversion efficiency is higher;
4. 24 hours working available,suitable for mass production and continuous work;
5. Strict producing and aging process,the whole machine is passed 2500V high voltage testing and CE,FCC,ROSH and so on specifications;
6. Different size, power and frequency can be made according to customers actual requirements.
MCU-SWEEP
Degassing
Constant power output
Work-conserving
Applications
Ultrasonic vibrating plates are mainly used in cleaning, emulsification, polymerization, crushing and other fields.Through high-frequency vibration and micro-strong impact, it can effectively remove dirt, oil stains, rust spots and other impurities on the surface of items, improving cleaning efficiency and quality.In emulsification applications, the vibration and cavitation of ultrasonic waves can be used to promote the dissolution, dispersion, and mixing between solids and liquids, and liquids and gases in the liquid, forming a uniformly dispersed emulsion. In addition, ultrasonic vibrating plates are also used in polymerization reactions and crushing applications in chemical synthesis, polymer polymerization, material science, medicine, food and other fields. In addition,ultrasonic vibrating plates have other applications such a promoting plant growth and increasing plant yields.
