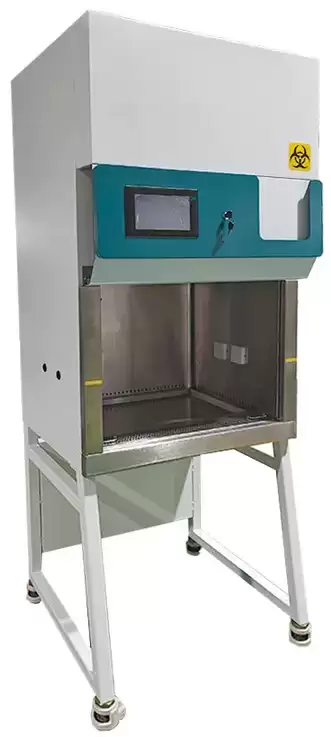

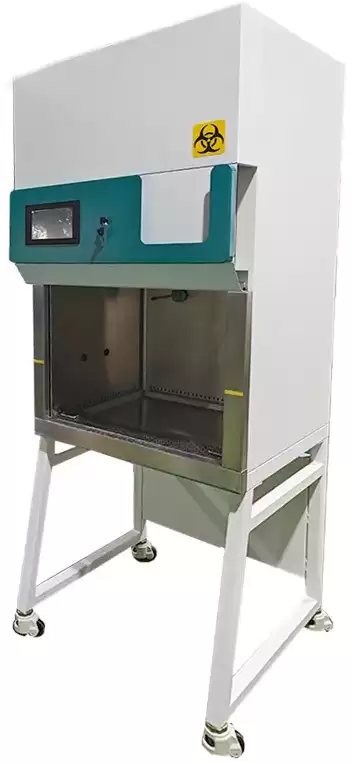

Class II Biosafety Cabinet BER-3802
Class Ii A2 Biosafety Cabinet
- 1. Color 7.0 inch touch screen controller
- 2. Standard with high precision thermal wind sensor
- 3. With reservation timing sterilization function, three-level authority management function, high efficiency filter, sterilization lamp service life display, built-in socket instrument controllable switch function, front window status display function, can set three position interlock function, cumulative work timing function.
- 4. Optional: ULPA Filter
Old SKU: BER1BM2
Get Quote
Download Catalog
Specifications
| Model | BER-3802 |
| Classification | A2: 30% efflux, 70% internal circulation |
| Function | |
| Cleanliness | Class 100 |
| Collection Efficiency | 0.3um particle ≥99.995% |
| Colony count | ≤0.5/vessel (petri dish is Φ90mm) |
| Noise Level | ≤67db |
| Vibration Semi-peak Value | ≤5um |
| Downflow Velocity | 0.33 ± 0.025m/s |
| Inflow Velocity | 0.53 ± 0.025m/s |
| Lumination | Average luminance ≥650lx, the measured value of each illuminance ≥430lx |
| Total air exhaust of system | 363m³/h |
| Composition | |
| Work surface | SUS304 Stainless steel plate |
| Outer Shell | Cold rolling steel electrostatic spraying exterior |
| Operation Door | Tempered Glass |
| HEPA filter (mm) | 520*420*69 / 980*495*69 |
| Fluorescent Lamp Power | 8W*2 (LED) |
| UV Light Power | 15W*1 |
| Fan | 734W one piece |
| Rated Power | 1600W |
| Working height of front window | Working height of front window |
| Maximum height of front window | 440mm |
| Controller | |
| Display | Full color 7.0-inch touch screen |
| Additional Function | Reservation timing sterilization function, three-level authority management function, high efficiency filter, sterilization lamp service life display, built-in socket controller to control switch function, front window status display function, three position interlock function, cumulative work timing function |
| Specification | |
| Operating Area Size (W*L*Hmm) | 950*625*628 |
| Exterior Size (W*L*Hmm) | 1100*795*2250 |
| Packing Size (W*L*Hmm) | 1230*925*1655 |
| Max Power of Universal Socket | Single socket: 800W |
| NW/GW kg | 294/354 |
Features
1. Color 7.0 inch touch screen controller
2. Standard with high precision thermal wind sensor
3. With reservation timing sterilization function, three-level authority management function, high efficiency filter, sterilization lamp service life display, built-in socket instrument controllable switch function, front window status display function, can set three position interlock function, cumulative work timing function.
4. Optional: ULPA Filter
2. Standard with high precision thermal wind sensor
3. With reservation timing sterilization function, three-level authority management function, high efficiency filter, sterilization lamp service life display, built-in socket instrument controllable switch function, front window status display function, can set three position interlock function, cumulative work timing function.
4. Optional: ULPA Filter
Applications
Table type clean equipment.
