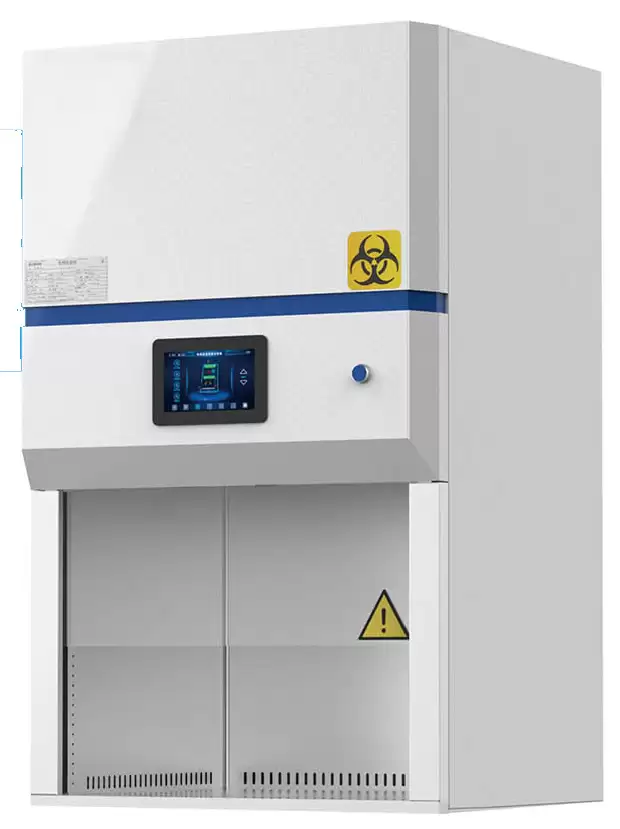

Class II Biosafety Cabinet BEM1J1
Class Il A2 Biological Safety Cabinet, Class Ii A2 Biological Safety Cabinet- Sea, Air, Door to Door Shipping
- 1 Year Warranty
- US & European Standards
Specifications
| Model | BEM1J1 |
| External Size(W*D*H) | 700*650*1230mm |
| Internal Size(W*D*H) | 600*500*540mm |
| Tested Opening | Safety height 200mm(8") |
| Max Opening | 370mm(15") |
| Inflow Velocity | 0.53±0.025m/s |
| Down Flow Velocity | 0.33±0.025m/s |
| HEPA Filter | Two, 99.995% efficiency at 0.3μm. Filter life indicator |
| Front Window | Motorized. Single Layer toughened glass25mm. Anti UV. |
| Noise | ≤ 67dB |
| UV Lamp | 18W*2UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination |
| LED Lamp | 8W*2 |
| Illumination | ≥1000Lux |
| Consumption | 500W |
| Socket | Two, total load of two sockets: 500W |
| Display | 7 inch large touch screen |
| Control System | Microprocessor |
| Airflow System | 70% air recirculation, 30% air exhaust |
| Visual and Audio Alarm | Filter replacement, window over height, abnormal air flow velocity, high filter pressure alarm |
| Material | Work Zone: 304 stainless steelMain Body: Cold-rolled steel with anti-bacteria powder coating |

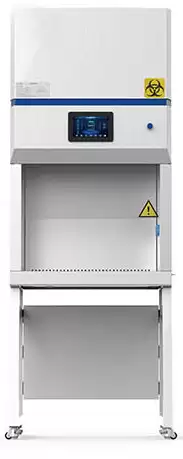

| Work Surface Height | 750mm with optional base stand |
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz |
| Standard Accessory | LED lamp*2, UV lamp*2, Remote control, Waterproof sockets*2, Base stand, handle*4, Universal caster with brake and leveling feet |
| Optional Accessory | SS Water tap*1, SS Gas tap*1 |
| Packing Size(without base stand) | Carton: 730*787*1450mmWood: 860*780*1420mm |
| Gross Weight(without base stand) | Carton: 120kgWood: 140kg |
| Packing Size(with base stand) | Carton: 850*787*1450mmWood: 860*970*1420mm |
| Gross Weight(with base stand) | Carton: 140kgWood: 160kg |
Features
LCD Display, 7 inch large touch screen is easy to monitor all the safety parameters at a glance and ergonomically sized control panel
Handle, Four handles on each corner, easier to move the unit to anywhere
Work zone, is made of 304 stainless steel, is surrounded by negative pressure
Remote Control, Al functions can be realized with it, making the operation much easier and convenient.
Waterproof Socket, 2 waterproof sockets are located in the side panel, for optimum convenience of using small devices inside the cabinet.
UV Lamp, Emission of 253.7 nanometers for most efficient decontamination
1. Small dimension, save space.
2. Centrifugal fan, speed adjustable; H14 HEPA filter.
3. Motorized front window: The front window is motorized for convenient, one-hand operation.
4. Audio and visual alarm:Abnormal airflow velocity,Filter replacement,Front window at unsafe height,High filter pressure alarm.
5. Self-locking button switch to solve the trouble of losing the key.
6. Removable handle design, easy to move.
7 inch Large touch screen with Intelligent control system: Operators can check detailed status of the cabinet, such as inflow and downflow velocity, work area temperature and humidity, filter pressure, UV working time and filter working time, filter life indicator etc.
8. With memory function in case of power-failure.
9. Interlock function: UV lamp and front window; UV lamp and blower, LED lamp; blower and front window.
